Document type Technical Data Sheet

Name Mica D'oro

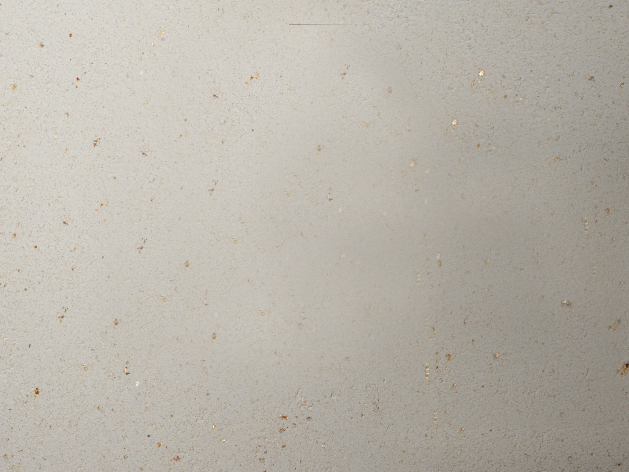

Description Natural, lime-based material for decorative finishes on interior and exterior wall

surfaces. Naturally anti-mould and breathable. The finish alternates textured and

smooth areas and is speckled with golden micas.

Composition Aged, slaked lime and selected marble powders, golden mica

Grain size 1 mm

Appearance Paste

Colour White with golden flakes, it can be tinted in any colour with lime-compatible colourants

Packaging 24 kg net polyethylene containers

Application By hand, with a steel trowel

Type of Surface Interior and exterior walls

New Wall Surface

Plaster: no priming necessary

Gypsum / Plasterboard / Medium Density: one coat of QUARTZ PRIMER

Old Wall Surface

Plaster: one coat of QUARTZ PRIMER

Fast drying / Limewash: brush down and apply one coat of QUARTZ PRIMER

Polished Lime: Abrade, brush down and apply one coat of QUARTZ PRIMER

Washable Paint: one coat of QUARTZ PRIMER

Dilution Ready to use

Consumption 3,7 kg after two coats

Drying 4 hours at 20°C / 68°F to the touch

48 hours at 20°C / 68°F below the surface

180 days stable

Application temperatures min 5 max 30°C – R.U. < 85% ca

Coat Thickness 1.8 – 2.3 mm for a total of 2 coats

VOC Classification EU Directive 2004/42/CE: EU limit value for this product (cat A/l – water-based

decorative effect coating): 200 g/l (2010). This product contains less than 1 g/l of VOC.

Specific Weight 1.4 ± 0.2 (kg/l)

pH after 30 days 12.5 ± 0.50

Vapour Permeability SD ~ 0,04 m (DIN 52 615)

Flammability European Class of Reaction to Fire A1: non-combustible, no contribution to fire

Mould Resistance ASTM D 3274 – “Standard Test Method to evaluate the degree of surface

disfigurement of paint by microbial, fungal and algae growth.

Result: Front Panel 10/10/10 Back Panel 10/10/10 = no growth

Scrub Test Resistance ASTM D 2486-06 method A = was used: scrubbing fine sand + metallic brush for

10,000 cycles

April 23 TDS Mica D'oro 2 of 4

Impact Test UNI EN ISO 6272-2-2006. 1 kg doming punch was dropped from different heights and

only at the height of 8 cm., it left a 5.5 mm. dent in the surface and a tiny crack

appeared around its circumference.

Pencil Hardness ASTM D3363- Pencil hardness 5H

Shore Hardness Norm ASTM 2240 average

Adhesion Norm UNI EN 13892-8 2004 average value = 2,0

Shelf life 36 months when stored according to the recommended guidelines

Storage In original sealed packaging between 5° - 35°C in a dry, dark environment

Safety Norms Irritating. / Risk of serious damage to eyes. / Irritating to the skin. / Keep out of children.

/ Avoid contact with eyes. / In case of contact with eyes, clean immediately with water

without rubbing them, and consult a doctor. / Wear suitable gloves and eyes / face

protection. / In case of ingestion of the products, consult immediately a doctor showing

him the can or the label of the product. Danger labelling under directives 67/548/EEC

and 1999/45/EC and following amendments and adjustments. The product must be

transported, used and stored according to current standards of hygiene and safety.

Disposal Product must be disposed of according to norms and regulations in force. Containers

must be sent for recycling. Follow directions on the packaging

Application Instructions WARNINGS

Water on the surface of the material in the bucket is normal and should be removed

before use or addition of colourants. All lime-based products lose their viscosity when

mixed and need a period of 6/12 hours after mixing to regain their density. This

product is dense, and ready for use; thus it may be necessary to use an appropriate

drill attachment to stir for a few minutes to reduce viscosity. Choose the colour and

add the toner additive to the container and continue mixing until a homogeneous shade

is obtained. Let the product rest for about 5 hours before you begin to use it.

We recommend using materials from the same production batch for the same project.

If you must use different batches, we suggest mixing their material together to avoid

any slight variations in shading.

To ensure proper usage, dilution, and application of the products mentioned in these

pages, please consult the corresponding technical data sheets.

When preparing the surface and applying the materials, we advise using appropriate

tools and personal protective equipment (PPE).

During application and for the following 72 hours, protect the surfaces from sudden

temperature change, direct sun light and water. Don’t apply in temperatures below 8°C

or above 35°. During application make sure that the work area isn’t too damp to avoid

problems with application times.

Remember to have a strong light parallel to the wall and situated on only one of the

two sides of the wall you are working on (usually on the same side as other sources of

light such as windows). In this way the shadow of the trowel allows you to see the

actual state of the finish. Every so often, during the second and third coat, the light

should be moved so that the wall doesn’t dry out too much in one spot from the heat of

the lamp.

April 23 TDS Mica D'oro 3 of 4

APPLICATION

Protection of the work area: Masking tape and protective material over the baseboards

and around windows and doors.

Mica D'oro ,  can be applied on rough and smooth plasters, new and old. Existing paints

need good brushing to remove surface dust and the inconsistent parts. Where

necessary, apply a layer of QUARTZ PRIMER or UNIVERSAL PRIMER laid with a

brush or roller, diluted with water according to the instructions.

The application must be carried out with a steel trowel in two coats. The application of

the first coat is carried out with a metal trowel with a consumption of about 1800-1900

g/sqm. The next day, or at least when the first coat is completely dry, apply the second

one with the same method and consumption. When the surface begins to dry, level it

up with SPONGE FLOAT COARSE. Let it dry about a 30-40% and then press the

surface with the blade of the metal trowel. If you do this smoothing too soon, you risk

smoothing out all the surface, almost like a Marmorino. If you do it too late, you fail to

create smooth areas that, in a properly applied finish, must alternate with the rough

ones. This pressing can be continued until the smooth area becomes almost shiny.

The blade has to be moved in different directions to avoid the creation of ridges

(“chatters”).

EXTERIORS

For exterior applications there are some rules to respect and some precautions to take.

We remind you that carbonation, i.e. the process that takes place through the

absorption of atmospheric CO2, is completed in a few hours on the surface but takes

several days to take place in depth. It is therefore important that the application takes

place in the certainty of the absence of heavy rains in the three following days. It is also

not recommended to apply it on walls that do not have at least a small roof overhang.

Penetrating rain could ruin the finish even after weeks as deep carbonation is

completed after more than a month. Avoid windy days, especially at high temperatures,

as well as the risk of frost in the 48 hours following application. In external applications

in hot climate conditions, it is also recommended to protect the wall from the sun with

shade cloths applied to the scaffolding. Lime-based products must dry slowly to better

fulfil their characteristics.

The application should be continuous and without linear brakes in the wall.

Finish Protection Interiors: A protective treatment is optional in most circumstances. It is however

necessary in bathroom, kitchen, and splashback walls.

Exteriors:

This finish, as all lime-based plasters, absorbs water during rainy weather,

which results in a temporary "wet effect" on the surface. However, this plaster releases

the absorbed water within a few hours, allowing the surface to dry without any damage

nor alteration to the finish. While a final treatment is therefore optional, it is highly

recommended in areas with high pollution levels or if you wish to avoid the temporary

wet effect that can occur after rainfall.

INTERIORS / EXTERIORS: after about 72 hours at least 20°C., proceed with the

application of the colourless protective impregnation HYDROCALCE, especially

April 23 TDS Mica D'oro 4 of 4

designed for the protection of external lime-based coatings. Its Installation is done by

brush in two coats, with a consumption of about 100-130 g/sqm.

Maintenance Little maintenance is needed, brush off dust occasionally.

Tools SI TROWEL, SPONGE FLOAT COARSE, SCRAPERS

Clean with water immediately after use
